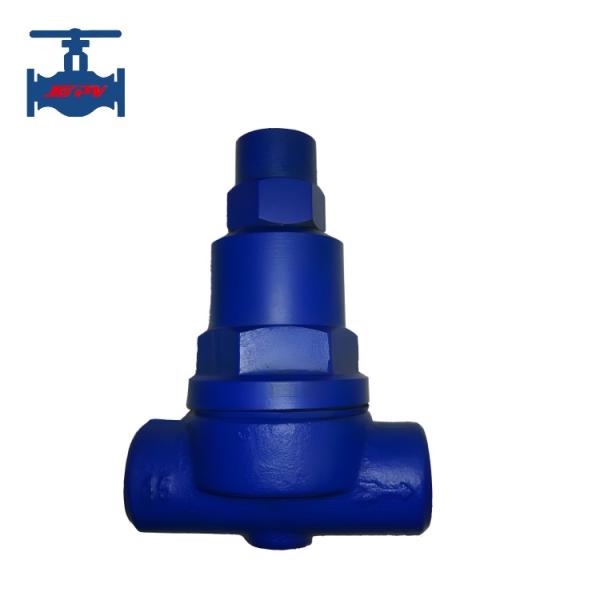

    Cast Steel Thermostatic Adjustable Bimetallic Steam Trap For Water Displacement

    Ask Lasest Price
    Brand Name : JGPV
    Model Number : CS17H-JGPV
    Price : USD19.9/Set - USD399.9/Set
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 500 Set per month
    Delivery Time : One week
    • Product Details
    • Company Profile

    Cast Steel Thermostatic Adjustable Bimetallic Steam Trap For Water Displacement


    Cast Steel Thermostatic Adjustable Bimetallic Small Displacement Steam Trap


    Product introduction:


    Adjustable bimetallic steam trap has a unique structure, excellent performance, large drainage capacity, adjustable leakage temperature, and a sub-cooling of around 2 ℃, which may eliminate a large amount of cold air and other non condensable vapors and will not cause steam blockage. Replaceable internal components, easy to maintain and adjust. Using the principle of thermal sensing to discharge condensed water can handle large start-up loads. As the system temperature and pressure increase, the stacked nickel chromium bimetallic components of the drain valve begin to expand. When steam reaches the drain valve, the valve is tightly closed to prevent steam loss. Ensure that the system operates efficiently while saving energy.


    Product component and performance:


    Model: CS46HCS17H
    PurposeDischarge moisture from steam
    Pressure nominal1.6-6.4MPa
    Port sizeDN15-DN50
    Raw materialCast steel and stainless steel
    OperationAutomatic
    ConnectionBSP & NPT hreaded connection
    Medium typeSteam and condensed water
    Working temperature200℃

    Product features:

    1. Durable and sturdy: The structure of bimetallic type steam trap is sturdy and can withstand harsh working conditions such as high pressure and water hammer.
    2. Compact and lightweight: Bimetallic type steam strap with small in size, light in weight, easy to install and maintain.
    3. Flexible installation: It can be installed at any angle without being limited by the installation position.


    Product performance advantages:


    1. Automatic emptying: capable of automatically removing air and non condensable gases to ensure the normal operation of the system.
    2. Temperature adjustable: By adjusting the bolts, the temperature of the discharged condensate can be adjusted as needed, effectively utilizing the sensible heat of the condensate.
    3. Good sealing performance: Adopting a spherical closing method, it has excellent sealing performance, no steam leakage, and good energy-saving effect.
    4. High back pressure rate: The back pressure rate is greater than 70%, and some products have a back pressure rate greater than 80%, which can adapt to higher back pressure conditions.
    5. Strong adaptability: wide working temperature and pressure range, good corrosion resistance, long service life, suitable for various working conditions.

    These characteristics enable adjustable bimetallic strip drain valves to efficiently remove condensed water in steam systems, prevent steam leakage, improve system thermal efficiency, and are widely used in steam pipelines, heating equipment, and other fields.
