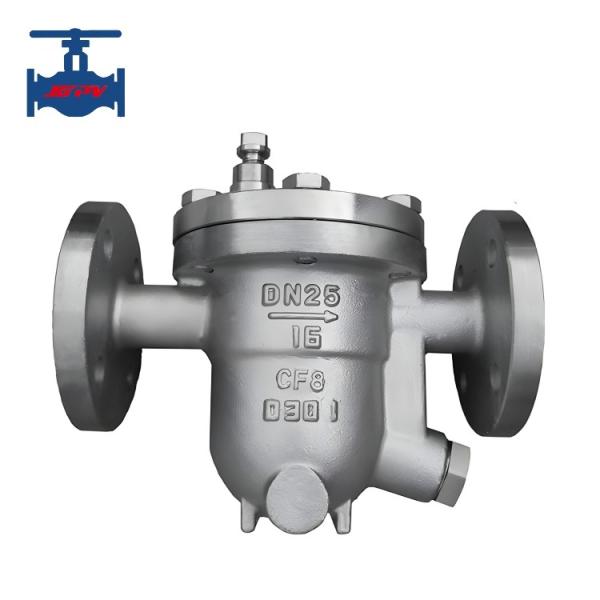

Cast Steel And Stainless Steel Flanged Free Ball Floating Steam
Trap
Product introduction:
A steam trap, also known as an automatic drainer or condensate
drainer, is divided into steam system use and gas system use. The
steam trap is installed at the end of the steam heated pipeline,
and its function is to continuously discharge the condensate water
from the steam heated pipeline to the outside of the pipeline.
Most steam traps can automatically identify steam and water
(excluding thermal static type), thereby achieving the goal of
automatic steam blocking and drainage. Steam traps are widely used
in industries such as petrochemicals, food and pharmaceuticals, and
power plants, playing a significant role in energy conservation and
emission reduction.
Free ball float steam trap is generally used in steam pipe network
and equipment, can automatically discharge condensate, air and
other non-condensing gas, and prevent steam leakage of the valve.
This type of valve should generally be installed horizontally in
the pipeline.
Free ball floating steam trap valve products use the principle of
buoyancy, float according to the amount of condensed water changes
with the water level and rise, automatically adjust the opening of
the valve seat hole, continuous discharge of condensed water.When
the condensate stops entering, the float drops to the bottom by its
own weight and closes the drain seat hole.Because the drainage
valve seat hole is below the condensate water level, the water
vapor is separated naturally and the water seal is formed to
achieve no steam leakage.
Product component and performance:
| Strength test | 1.5 times of pressure nominal | | Valve body | WCB/HT/QT |
| Performance test | Air | 0.4～0.6Mpa | Bonnet | WCB/HT/QT |
| Water | 0.4～0.6Mpa | Float ball | Stainless steel |
| TMO | 350℃ | Valve seat | Stainless steel |
| PMA | 0.5～4.0Mpa | Filter | Stainless steel |
| TMA | 280℃~540℃ | Shield | Special steel |
| LNT | ≈0℃ | Auto device | A105+ SS |
| MRBP | 90 % | Sealing | PPL/H62 |
| LLR | ≈0 | Bolt | 45/35CrMoA |
| Medium | Steam condensate | Nut | 45 |
Product Discharge capacity under different pressure:
| Port size | 15～25 | 32～50 | 65～80 | 100～125 | 125～150 |
Pressure Mpa | B | D | F | G | G |
| Max discharge capacity (Kg/h) |
| 0.5 | 550 | 1000 | 1900 | 2270 | 2730 |
| 0.6 | 410 | 850 | 1630 | 1800 | 2300 |
| 1.0 | 360 | 790 | 1300 | 1660 | 2120 |
| 1.6 | 350 | 740 | 900 | 1290 | 1990 |
Product application:
Used in steam heating equipment, condensate recovery system and
conditions requiring rapid condensate discharge, it can
automatically, rapidly and continuously discharge condensate,
effectively prevent steam leakage, and obtain the best heating
effect.
Product advantages:
1. Continuous discharge of saturated condensate heating equipment
without water accumulation, thus obtaining the highest thermal
efficiency.
2. The float ball can automatically adjust the opening of the valve
seat hole, with continuous work and stable performance.
3. Good air exhaust performance, automatic exhaust device, no air
lock phenomenon, smooth work without noise.
4. Automatic free floating ball trap is an automatic valve,
especially for low pressure, low displacement and high temperature
stability requirements, not with condensed water steam equipment is
more suitable.
4. Automatic free floating ball trap can continuously drain water,
stable performance, large displacement, small leakage.
5. It can drain continuous saturated water, so that the condensate
storage is less, the heating temperature is fast and the heating
temperature is stable
6. Automatic air exhaust device, no steam lock phenomenon, work
balance and without noise.
