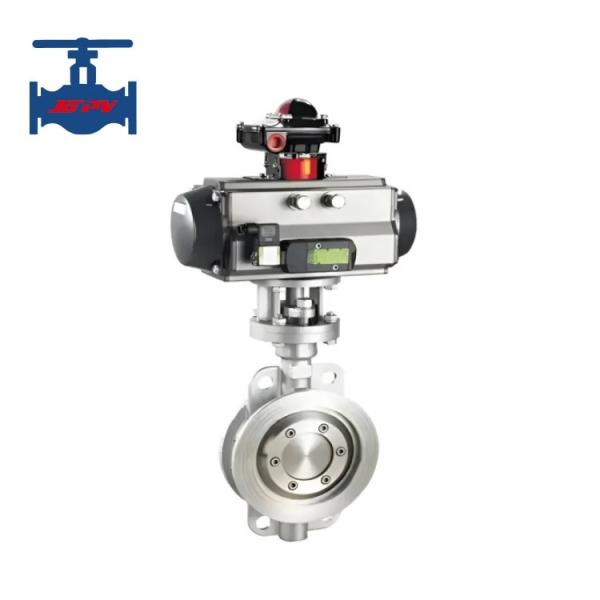

Stainless Steel Wafer Type Butterfly Valve With PTFE Lined And Pneumatic Actuator

Product introduction:

Three eccentric metal hard sealed butterfly valve, the valve body and seat are connected components, and the sealing surface layer of the seat is welded with heat-resistant and corrosion-resistant alloy material. Multi layer soft stacked sealing rings are fixed on the valve plate. Compared with traditional butterfly valves, this butterfly valve has high temperature resistance, easy operation, frictionless opening and closing, and compensates for the sealing with the increase of torque of the transmission mechanism when closing, improving the sealing performance and extending the service life of the butterfly valve. It has been widely used in many fields such as petroleum, chemical, metallurgy, hydropower, etc.

Product technical paramters:

Product features:

1. The hard seal butterfly valve adopts a three eccentric hard seal structure, with minimal wear on the valve seat and butterfly plate, and has a sealing function that becomes tighter as it is closed.
2. The sealing ring is made of stainless steel, which has the dual advantages of metal hard sealing and elastic sealing. It has excellent sealing performance in both low and high temperatures, corrosion resistance, and long service life.
3. The sealing surface of the butterfly plate is made of welded hard alloy, which is wear-resistant and has a long service life.
4. The large-sized butterfly plate adopts a frame structure with high strength, large overcurrent area, and low flow resistance.
5. According to user requirements, hard sealed butterfly valves can be designed with bidirectional sealing function, which is not limited by the flow direction of the medium or the spatial position during installation, and can be installed in any direction.

•
